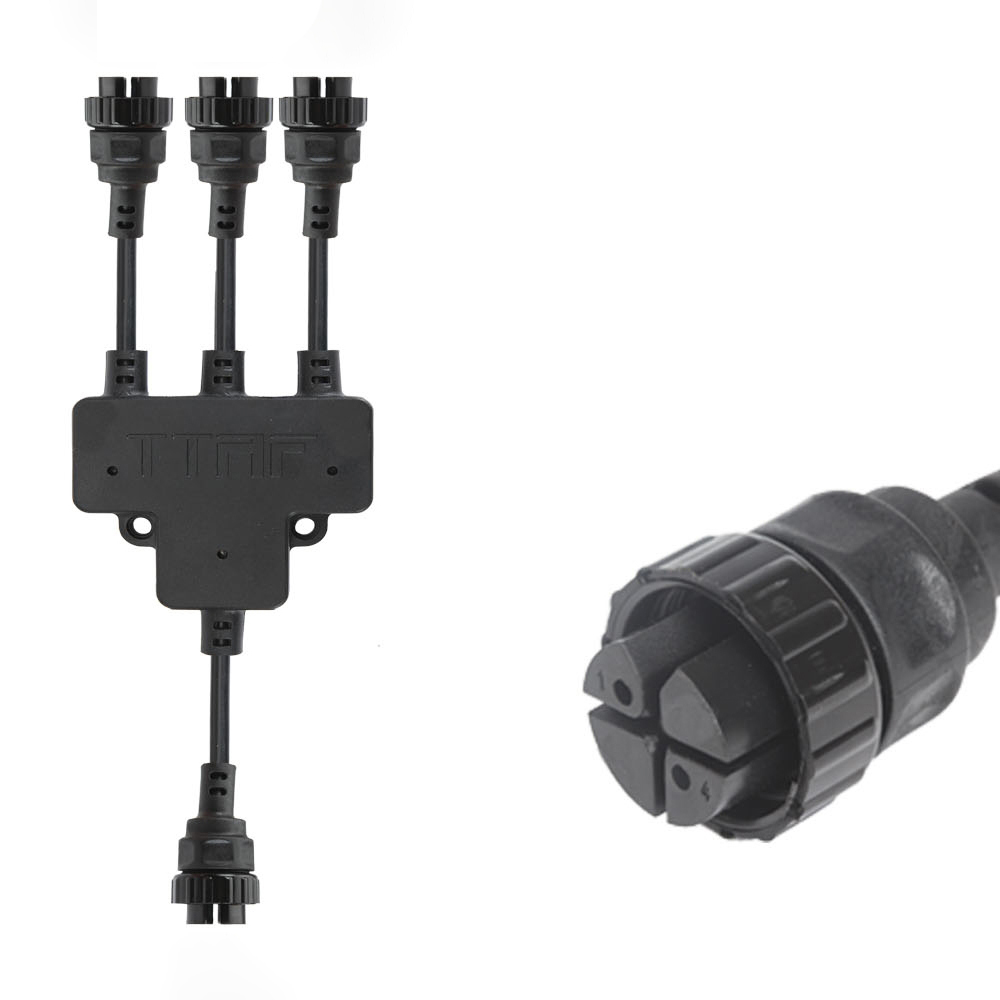

2 Pin Female Pluggable Field Assembly 1 In 3 Out Electrical Splitter

2 Pin Female Pluggable Field Assembly 1 In 3 Out Electrical Splitter

Product Code: WPS-0204N20F

TECHNICIAL SPECIFICATIONS

Number of Poles 2
Durability Voltage 3000VAC @ 60 s.
IP Rating IP68
Operating Temperature -40°C ~ +85°C
Seal Material Silicone
Mold Material PA6
Insulation Structure 500 MΩ at 500VDC
Current Rating 16A max
Voltage Rating 250VAC max
