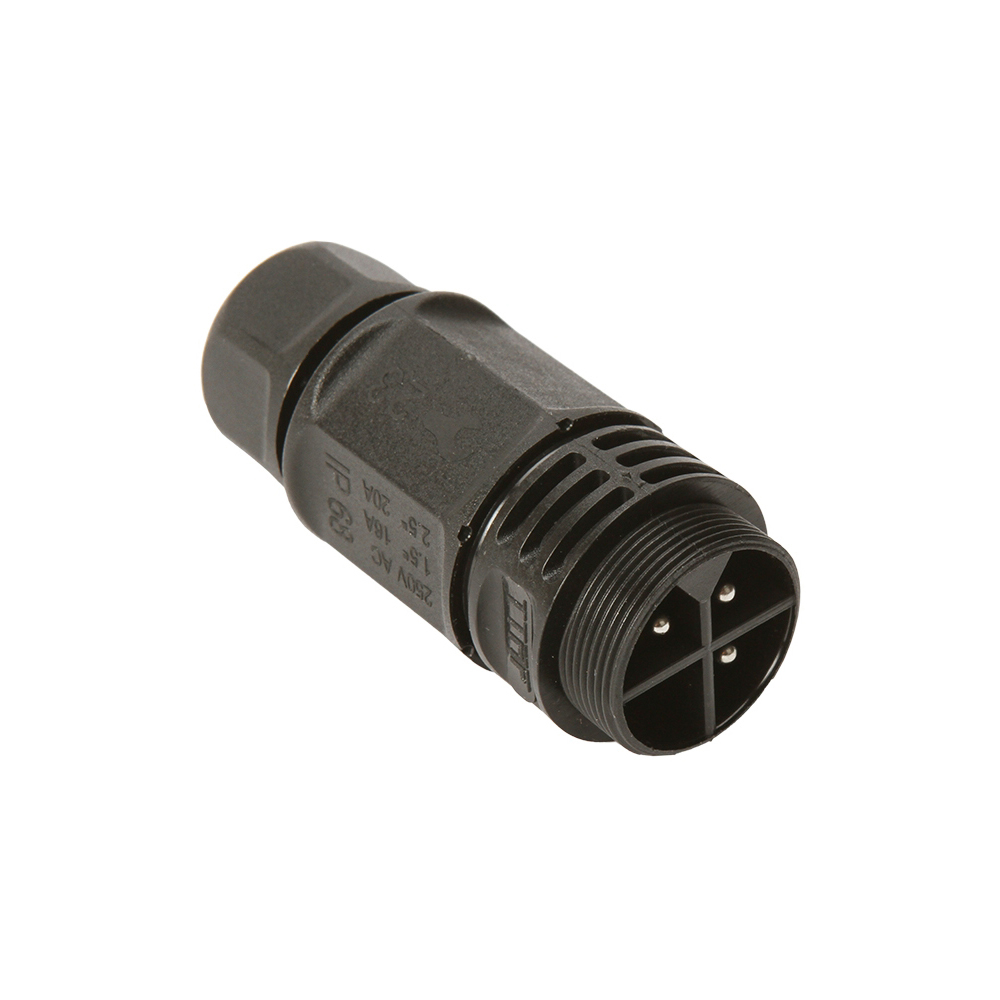

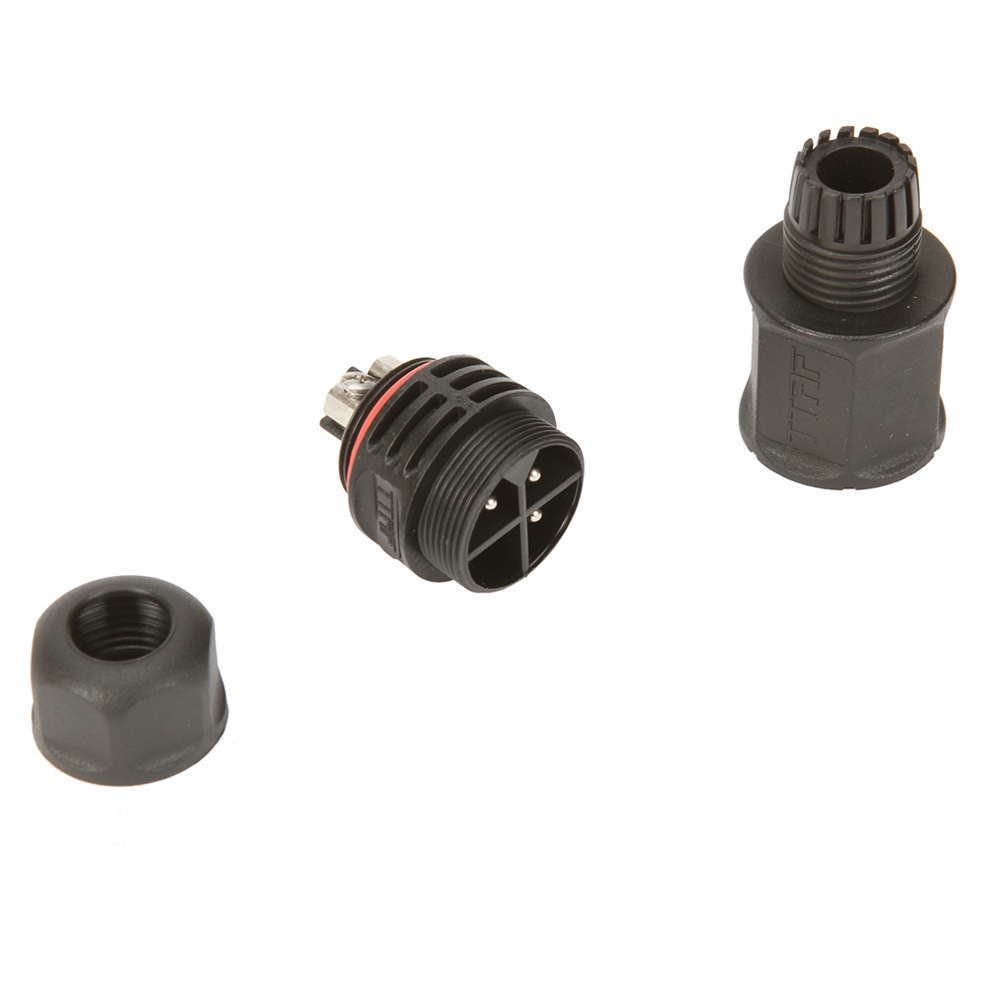

3 Pin Male Field Assembly Pluggable Connector
Product Code: WPM-0300M20
TECHNICIAL SPECIFICATIONS
| Durability Voltage | 3000VAC @ 60 s. |
|---|---|
| Number of Poles | 3 |
| Seal Material | Silicone |
| Mold Material | PA6 |
| Insulation Structure | 500 MΩ at 500VDC |
| Contact Resistance | 30 mΩ max |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Current Rating | 20A max |
| Voltage Rating | 250VAC max |
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| 3 Pin | ||||||
| Male Field Type | 30 mΩ max |
