TT20 Series

TT20 Series

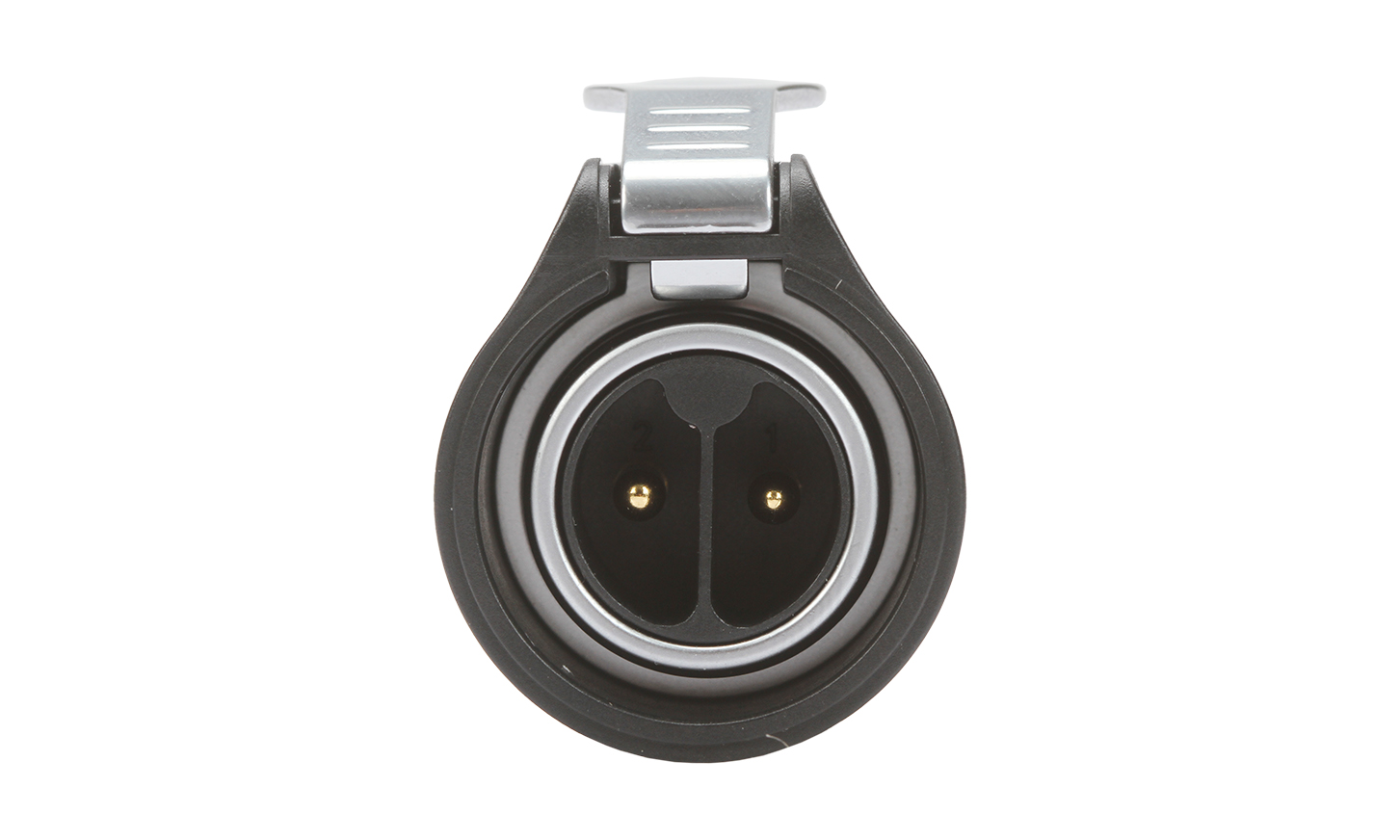

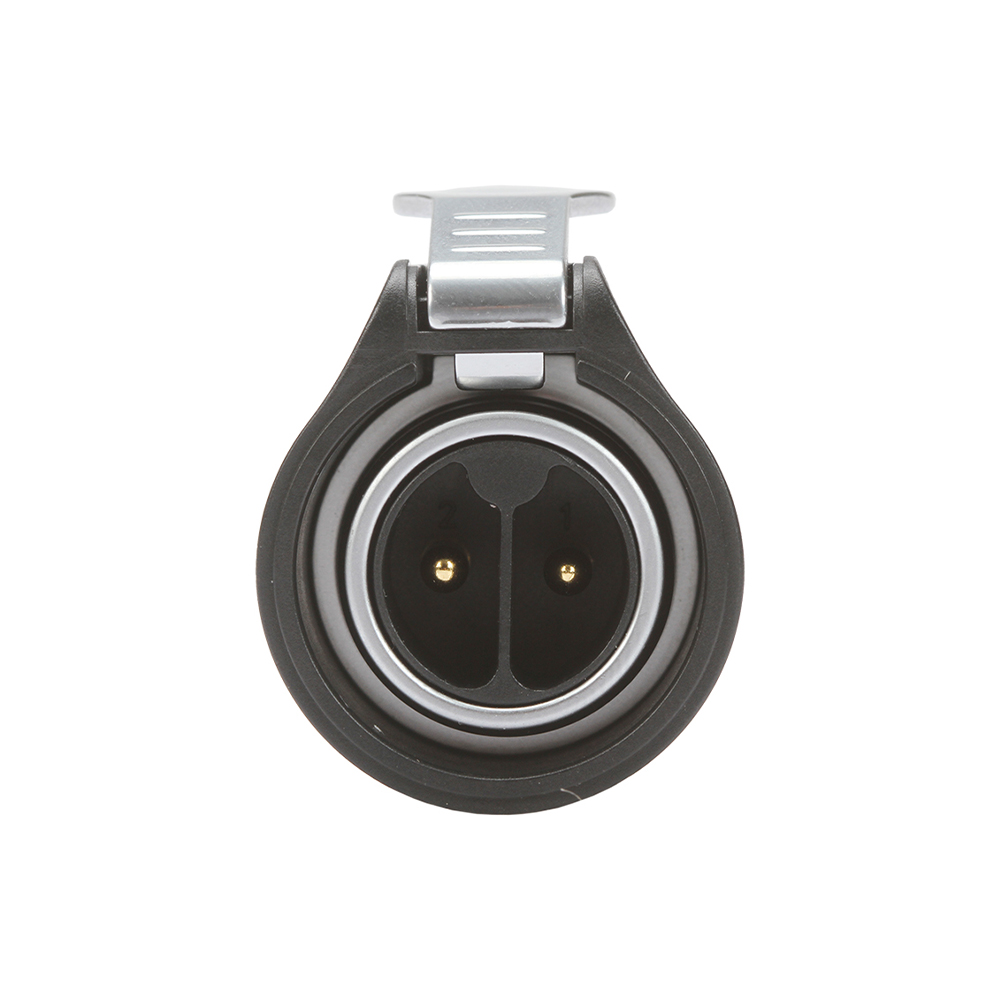

Industrial Waterproof Connectors

TT20 Series

Product Description Rated Current Operating Voltage Withstanding Voltage Contact Resistance Datasheet Technical Drawing
2 Pin

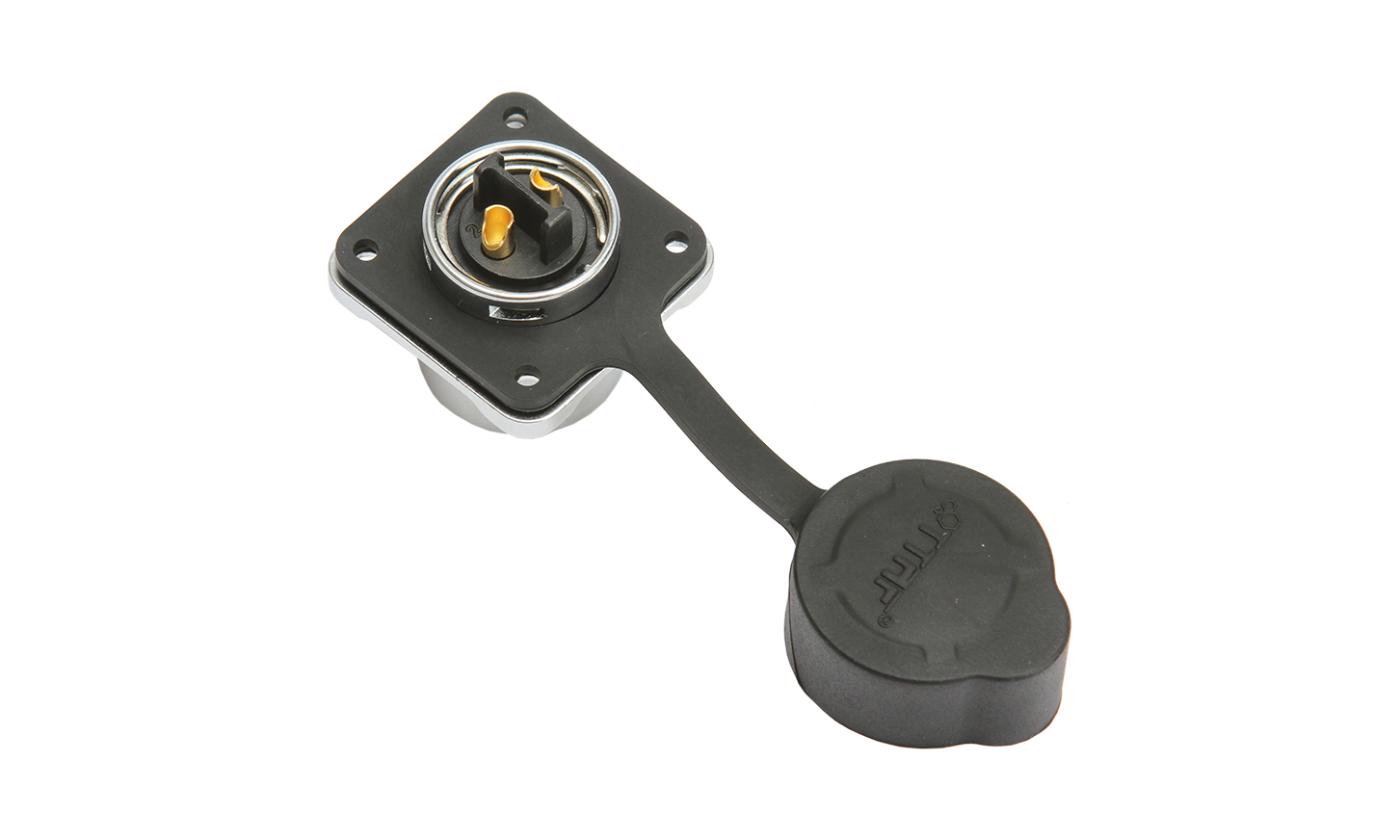

2 Panel Type Female 20A 500V 2500V <1mΩ

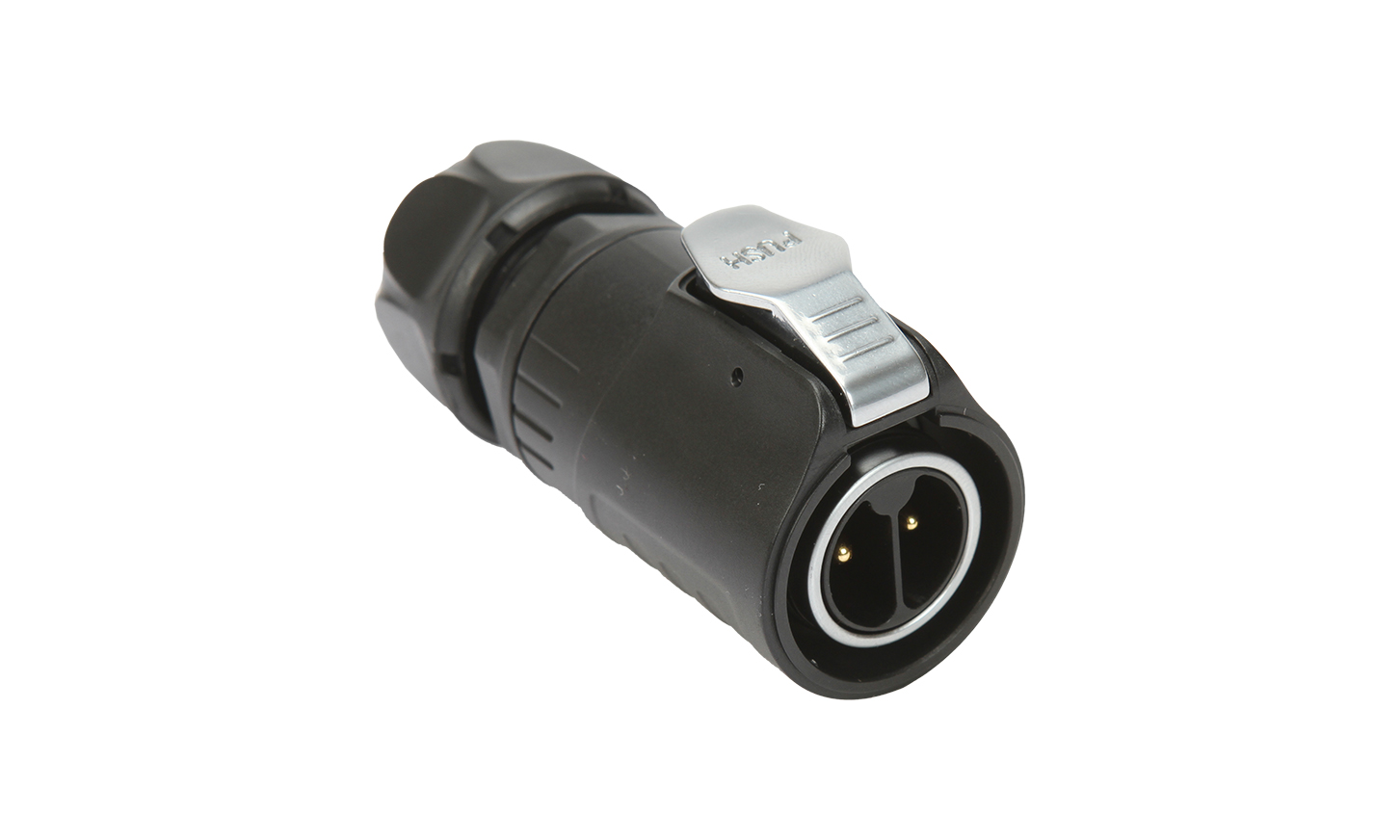

2 Cable Type Male 20A 500V 2500V <1mΩ
3 Pin
3 Panel Type Female 20A 500V 2500V <1mΩ
3 Cable Type Male 20A 500V 2500V <1mΩ
4 Pin
4 Panel Type Female 20A 500V 2500V <1mΩ
4 Cable Type Male 20A 500V 2500V <1mΩ
5 Pin
5 Panel Type Female 20A 500V 2500V <2.5mΩ
5 Cable Type Male 12A 500V 2500V <2.5mΩ
7 Pin
7 Panel Type Female 12A 500V 2500V <2.5mΩ
7 Cable Type Male 12A 500V 2500V <2.5mΩ
9 Pin
9 Panel Type Female 5A 400V 1500V <5mΩ
9 Cable Type Male 5A 400V 1500V <5mΩ
12 Pin
12 Panel Type Female 5A 400V 1500V <5mΩ
12 Cable Type Male 5A 400V 1500V <5mΩ
