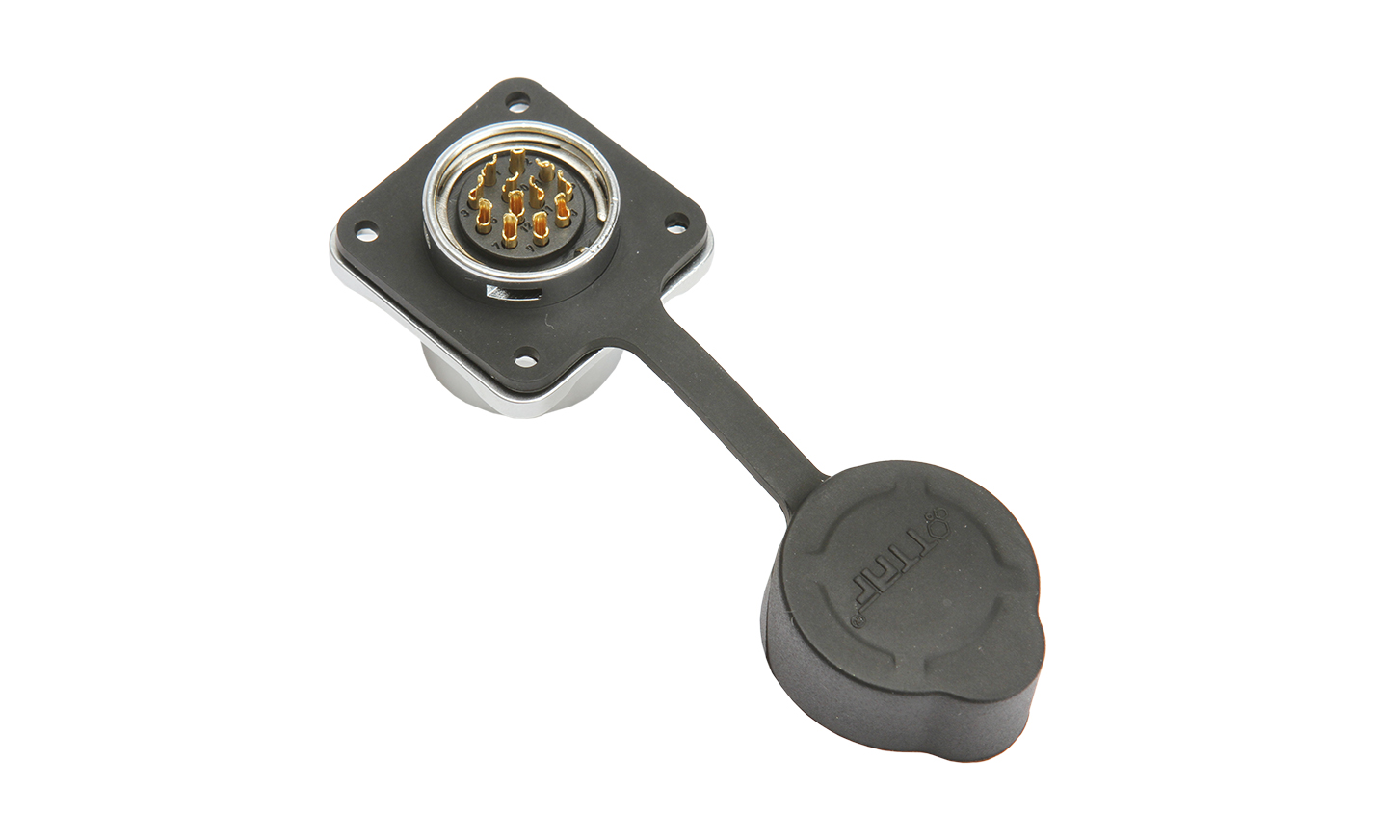

TT25 Series
Industrial Waterproof Connectors
| Product Description | Rated Current | Operating Voltage | Withstanding Voltage | Contact Resistance | Datasheet | Technical Drawing |
|---|---|---|---|---|---|---|
| 2 Pin | ||||||
| 2 Panel Type Female | 20A | 500V | 2500V | <1mΩ |
|
|
| 2 Cable Type Male | 20A | 500V | 2500V | <1mΩ |
|
|
| 3 Pin | ||||||
| 3 Panel Type Female | 20A | 500V | 2500V | <1mΩ |
|
|
| 3 Cable Type Male | 20A | 500V | 2500V | <1mΩ |
|
|
| 4 Pin | ||||||
| 4 Panel Type Female | 20A | 500V | 2500V | <1mΩ |
|
|
| 4 Cable Type Male | 20A | 500V | 2500V | <1mΩ |
|
|
| 5 Pin | ||||||
| 5 Panel Type Female | 12A | 500V | 2500V | <2.5mΩ |
|
|
| 5 Cable Type Male | 20A | 500V | 2500V | <2.5mΩ |
|
|
| 7 Pin | ||||||
| 7 Panel Type Female | 12A | 500V | 2500V | <2.5mΩ |
|
|
| 7 Cable Type Male | 12A | 500V | 2500V | <2.5mΩ |
|
|
| 9 Pin | ||||||
| 9 Panel Type Female | 5A | 400V | 2500V | <5mΩ |
|
|
| 9 Cable Type Male | 5A | 400V | 2500V | <5mΩ |
|
|
| 12 Pin | ||||||
| 12 Panel Type Female | 12A | 500V | 2500V | <5mΩ |
|
|
| 12 Cable Type Male | 12A | 500V | 2500V | <5mΩ |
|
